COATED GLASS

Overview

Heat reflective coated glass is to coat multilayer of metal and metal oxide layers on glass surface by vacuum magnetron sputtering technology. It can control visible light transmission and block solar radiation from entering the interior so as to reduce energy consumption of air-conditioning. In addition, it has many color options for modern building design. Its main function is to reduce the glass shading coefficient and restrict direct solar radiation transmission. Heat reflective coating does not reflect far infrared. Therefore, it has very little improvement in U value. For areas which are exposed to strong sunlight in summer, the thermal insulation of heat reflective glass is remarkable. It can effectively reduce the solar radiation entering the interior. When there is no sunlight such as at night time or on rainy days, its thermal insulation performance is more or less like normal clear glass. From the energy saving point of view, heat reflective glass is not suitable for cold areas as cold areas need sunlight for heating the interior. The only purpose for using this type of glass in cold areas is for aesthetic.

Click to zoom in
Click to zoom in

Features

1. Indoor Comfort: Effectively reflects solar radiation.
2. Economic: Saves Energy and lowers air-conditioning system costs.
3. Aesthetic: Various colors are available to match modern design concepts.
4. Privacy: Blocks sight from outside into a building.Due to the film reflection effect and outside of a building look not clear indoor scene.

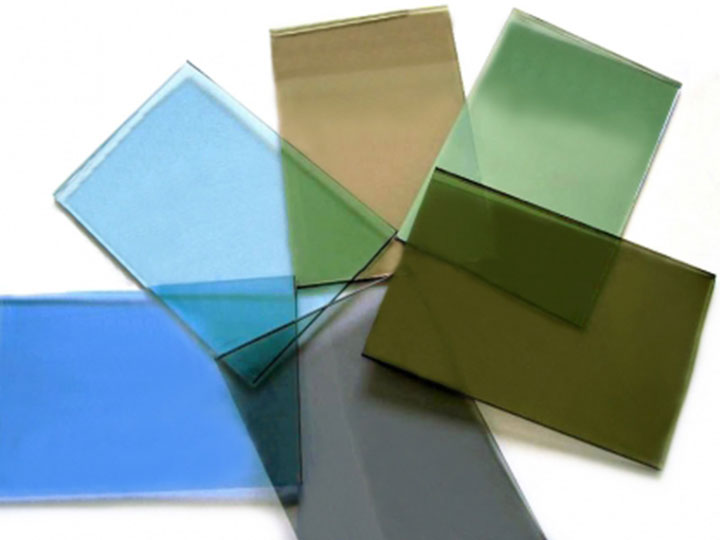

Color

Various shades of blue, green, blue green, silver grey and gold.

Click to zoom in
Click to zoom in

Specification

1. Size: Standard stock size: 2440mm×3660mm, 2400mm×3300mm, 2100mm×3300mm Maximum size: 3300mm×6000mm, minimum size: 300mm×800mm
2. Thickness: 3mm – 19mm
