MACHINERY

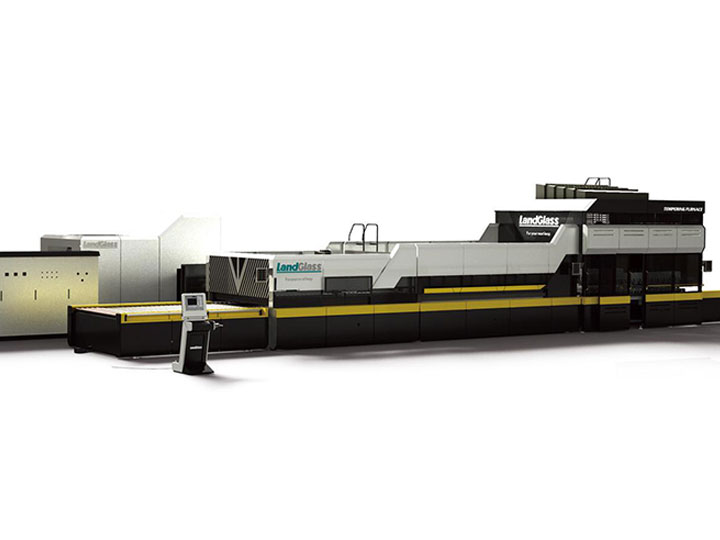

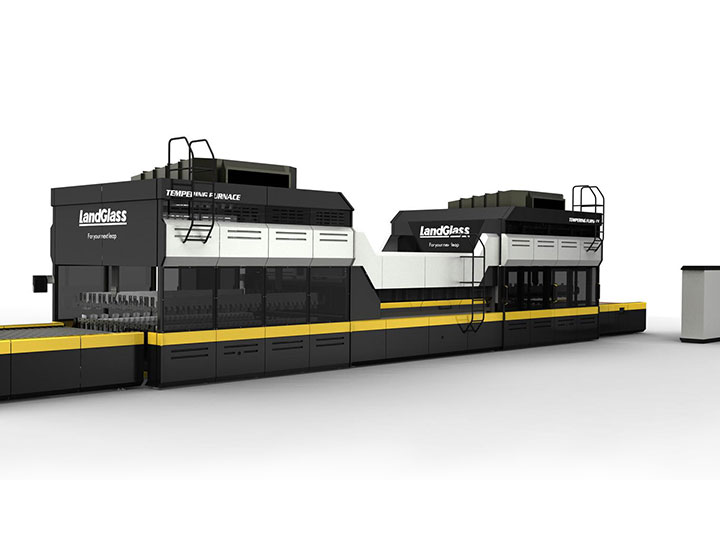

Electric Heating Furnace

Electric Heating Furnace —Radiation heating plays a main role during glass heating, while compressed air is injected into heating furnace, in which it brings certain amount of heat onto glass top surfaces and is helpful for even heating on-line Low-E glass, etc. SuperAirTM —Radiation heating plays a main role during glass heating, while larger volume of compressed air is blown into heating furnace by intelligent pipe convection system. Therefore, both on-line and off-line Low-E glass can be evenly heated. JetConvectionTM —Convection heating plays a main role during glass heating. After being heated in jet convection chamber, the hot air inside heating furnace is blown onto glass surfaces and then goes back to hot air blowers for continuous circulation, which not only ensure even heating, low production costs, but enhance the quality of the end products as well. LD-A AirStream flat tempering furnace adopts AirStream heating technology; it is suitable for tempering flat glass for architecture and furniture. Glass can be tempered includes: on-line Low-E glass, extra white glass, silk-printed glass, pattern glass, tinted glass, clear glass, etc.

Click to zoom in
Click to zoom in

Electric Heating Furnace

SPECIFICATIONS

Electric Heating Flat Tempering Furnace

Types

Max.
dimension
Min.
dimension
Glass
thickness
Procuctivity(loads/h)
Installed
capacity(KVA)
A1830
1800X3000
150X300
4-19
15
500
A1836
1800X3600
150X300
4-19
15
630
A1842
1800X4200
150X300
4-19
15
630
A2030
2000X3000
150X350
4-19
15
500
A2036
2000X3600
150X350
4-19
15
630
A2436
2440X3600
150X350
4-19
15
800
A2442
2440X4200
150X350
4-19
15
1000
A2450
2440X5000
150X350
4-19
15
1000
A2460
2440X6000
150X350
4-19
15
1250
A2480
2440X8000
150X350
4-19
15
1600
A2880
2800X8000
150X350
4-19
15
1600
A3050
3000X5000
150X350
4-19
15
2000
A3080
3000X8000
150X350
4-19
15
1600
A3250
3200X5000
150X350
4-19
15
1600
Productivity is calculated on 5mm clear glass with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.

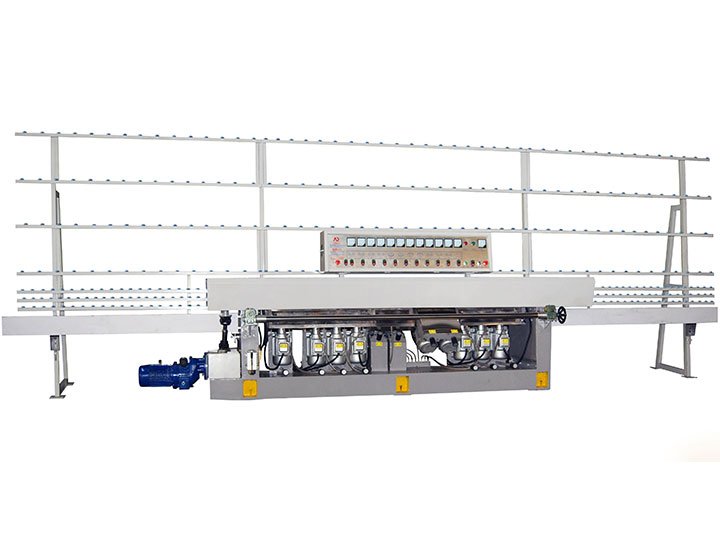

Glass Edging Machine

Glass straight line edging machine is used for grinding and polishing straight edges or 45deg.angles on flat glass of different sizes and thickness.Coarse grinding,refine grinding,polishing,and angle-making can be completed in a procession.Speed can be widely adjusted by its stepless regulator.Speed alteration is very smooth.In grinding operation,feeding and operation speed can be adjusted at random.Front rails can be adjusted to fit varied thickness of processed glass.It has feature with high precision,easy handling and high efficiency.

SPECIFICATIONS

Size of Machine
7300mm×1300mm×2500mm
thickness
3mm-25mm
mini size
80mm×80mm
speed
1-5.5m/min
Power
20KW
Weight
3600kg

Click to zoom in
Click to zoom in

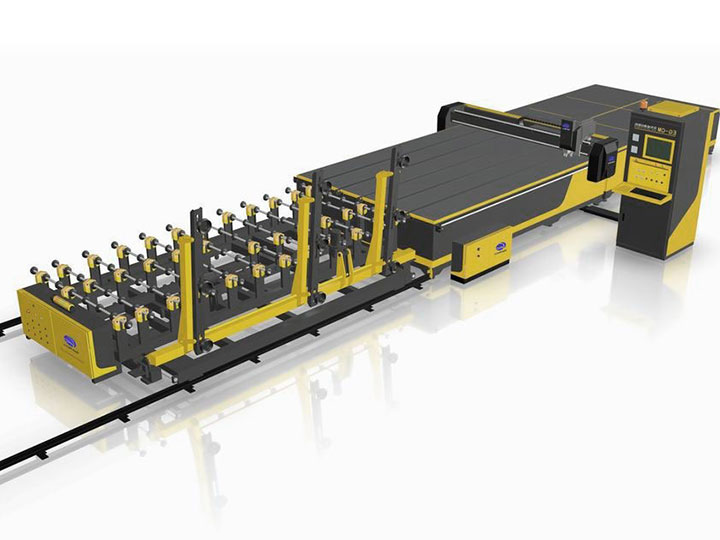

CNC Glass Cutting Machine

This automatic CNC-shaped glass cutting machine allows users to cut out any shape of glass with high precision. AUTO CAD designed graphs and figures, automatic cutting, with all the cutting data fully computer controlled. The operator can edit the glass size for cutting with computer. The computer can optimize the cutting size, and give out the data for processing, driven the machine to cut glass sheet automatically in high speed and high precision.

SPECIFICATIONS

 Model

Max. glass size

Thickness

Dimensions (L*W*H)

Max. speed

Air pressure

CNC-1915

1500*1200mm

2~19mm

2480*2240*1275mm

150m/min

0.6~0.8MPa

CNC-2620

2440*1830mm

2~19mm

3560*2912*1300mm

150m/min

0.6~0.8MPa

CNC-3725

3660*2440mm

3~19mm

4880*3412*1300mm

160m/min

0.6~0.8MPa

CNC-4028

4000*2800mm

3~19mm

5320*3100*1300mm

160m/min

0.6~0.8MPa

CNC-5033

5000*3300mm

3~19mm

6150*4212*1300mm

160m/min

0.6~0.8MPa

CNC-6033

6000*3300mm

3~19mm

7150*4212*1300mm

160m/min

0.6~0.8MPa

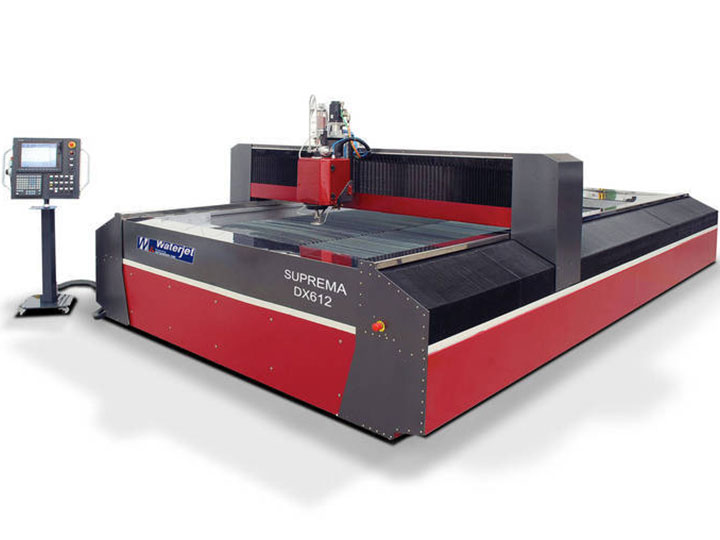

CNC Waterjet Cutting Machine

Abrasive waterjet systems excel at three-dimensional cutting, and Flow manufactures a complete line of turnkey systems for cutting complex shapes. The Mach Series cuts with precision accuracy, at speeds up to 400 inches per minute.Flow is pleased to introduce Dynamic Waterjet XD Technology. Dynamic Waterjet XD is the first and only 3-dimensional waterjet cutting technology that uses SmartStream technology giving you higher accuracy, faster cutting, and no taper.

SPECIFICATIONS
Size/Work Envelope:
- Base: 6 ft, 12 ft, 16 ft, 20 ft
- Bridge: 8 ft; custom sizes also available
Accuracy: ± 0.005 inches
Repeatability: ± 0.003 inches
Traverse Speed:
- X- & Y-axis: 0 to 900 ipm
- Z-axis: 0 to 450 ipm
Contour Speed: 0 to 400 ipm
Control System: Siemens 840D CNC controllers
Z-axis Adjustability: 24 inches

Click to zoom in
Click to zoom in

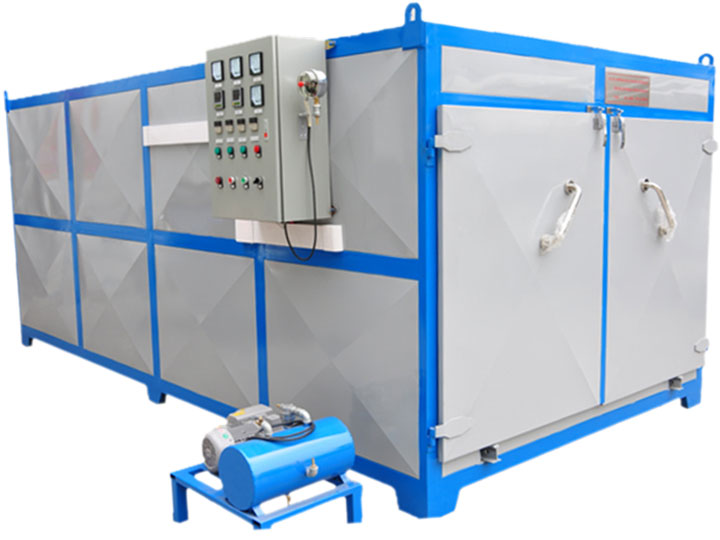

Laminating Machine

Our laminating machine is out of common.It can be jointed glass with EVA films though vacuuming and heating glass to make laminated glass . This machine can be laminated ordinary glass with fabric,silk,cotton , paper ,PET or special film to make various art glass and decorative glass .

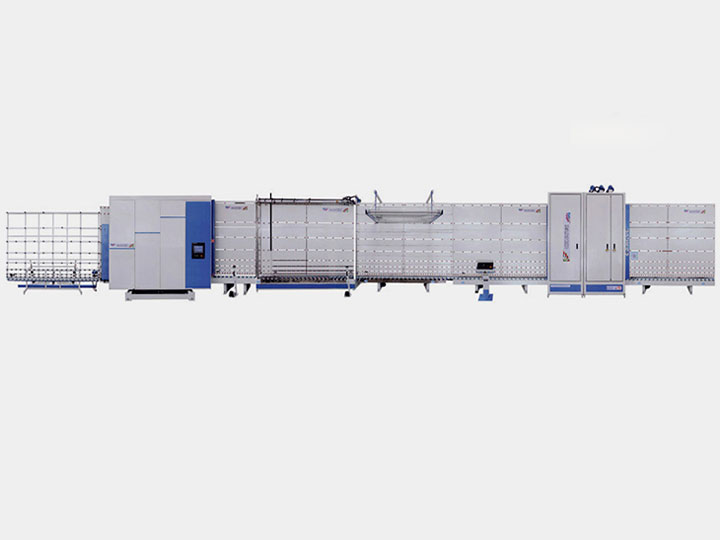

CNC Insulating Glass Produce Line

1.Adopt imported low power electric components, sensor and PLC auto-controlling system.
2.The operator can input glass unit continuously with high work effciency.
3.The touching screen is imported originally. It is easy to operate. The process and fault can be shown motively.
4.It is controlled by punctuated automated system which is energy-saving. The inspecting and combining speed up when other non working parts are intelligent-asleep.
5.This appliance can produce steped glass unit.
